Architecture

Overview

To be run by the CloudSlang Orchestration Engine (Score), a CloudSlang source file must undergo a process to transform it into a Score `ExecutionPlan <developer_score.md#executionplan>`__ using the SlangCompiler.

Precompilation

The file is first loaded, along with its dependencies if necessary, and parsed in the precompilation process. In precompilation, the CloudSlang file’s YAML structure is translated into Java maps by the YamlParser using snakeyaml. That parsed structure is then modeled to Java objects representing the parts of a flow and operation by the SlangModeller and the ExecutableBuilder. The result of this process is an object of type Executable.

Compilation

The resulting Executable object, along with its dependent Executable objects, are then passed to the ScoreCompiler for compilation. An `ExecutionPlan <developer_score.md#executionplan>`__ is created from the Executable using the ExecutionPlanBuilder. The ExecutionPlanBuilder uses the ExecutionStepFactory to manufacture the appropriate Score `ExecutionStep <developer_score.md#executionstep>`__ objects and add them to the resulting `ExecutionPlan <developer_score.md#executionplan>`__, which is then packaged with its dependent `ExecutionPlan <developer_score.md#executionplan>`__ objects into a CompilationArtifact.

Running

Now that the CloudSlang source has been fully transformed into an `ExecutionPlan <developer_score.md#executionplan>`__ it can be run using Score. The `ExecutionPlan <developer_score.md#executionplan>`__ and its dependencies are extracted from the CompilationArtifact and used to create a `TriggeringProperties <developer_score.md#triggeringproperties>`__ object. A `RunEnvironment <#runenvironment>`__ is also created and added to the `TriggeringProperties <developer_score.md#triggeringproperties>`__ context. The `RunEnvironment <#runenvironment>`__ provides services to the `ExecutionPlan <developer_score.md#executionplan>`__ as it runs, such as keeping track of the context stack and next step position.

Treatment of Flows and Operations

Generally, CloudSlang treats flows and operations similarly.

Flows and operations both:

  • Receive inputs, produce outputs, and have navigation logic.
  • Can be called by a flow’s task.
  • Are compiled to ExecutionPlans that can be run by Score.

Scoped Contexts

As execution progresses from flow to operation to action, the step data (inputs, outputs, etc.) that is in scope changes. These contexts are stored in the contextStack of the `RunEnvironment <#runenvironment>`__ and get pushed onto and popped off as the scope changes.

There are three types of scoped contexts:

  • Flow context
  • Operation context
  • Action context

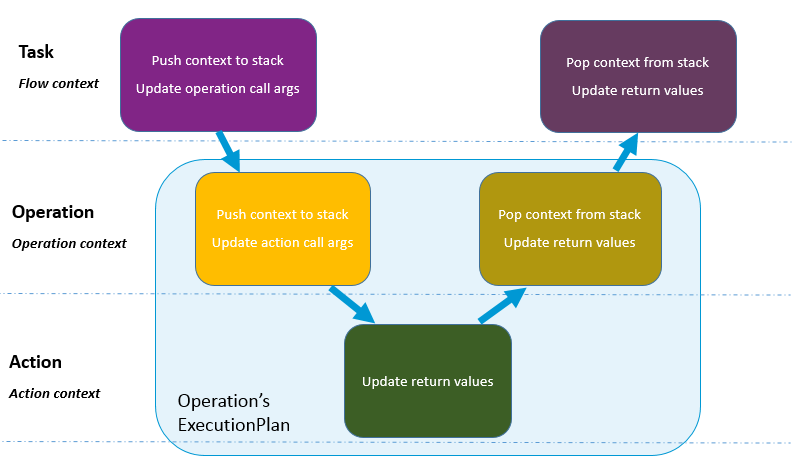

Scoped Contexts

Scoped Contexts

Types of ExecutionSteps

As flows and operations are compiled, they are broken down into a number of `ExecutionSteps <developer_score.md#executionstep>`__. These steps are built using their corresponding methods in the ExecutionStepFactory.

There are five types of `ExecutionSteps <developer_score.md#executionstep>`__ used to build a CloudSlang `ExecutionPlan <developer_score.md#executionplan>`__:

  • Start Step
  • End Step
  • Begin Task Step
  • End Task Step
  • Action Step

An operation’s `ExecutionPlan <developer_score.md#executionplan>`__ is built from a Start Step, an Action Step and an End Step.

A flow’s `ExecutionPlan <developer_score.md#executionplan>`__ is built from a Start Step, a series of Begin Task Steps and End Task Steps, and an End Step. The task steps hand off the execution to other `ExecutionPlan <developer_score.md#executionplan>`__ objects representing operations or subflows.

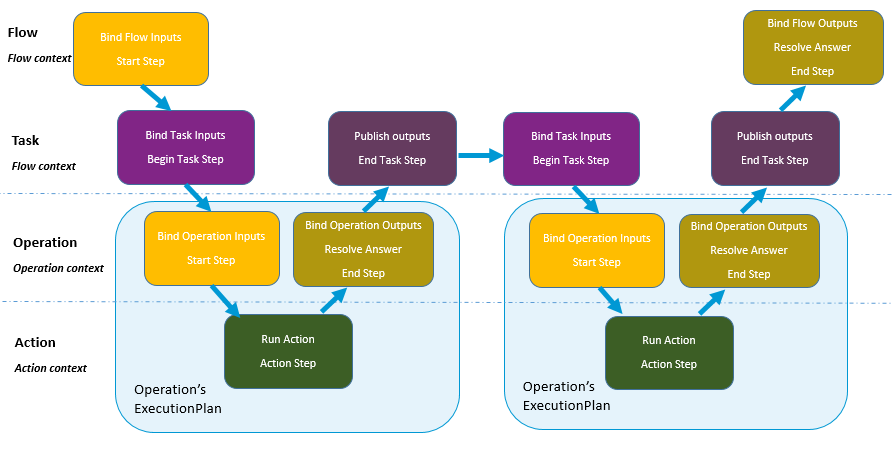

Execution Steps

Execution Steps

RunEnvironment

The RunEnvironment provides services to the `ExecutionPlan <developer_score.md#executionplan>`__ as it is running. The different types of execution steps read from, write to and update the environment.

The RuntimeEnvironment contains:

  • callArguments - call arguments of the current step
  • returnValues - return values for the current step
  • nextStepPosition - position of the next step
  • contextStack - stack of contexts of the parent scopes
  • parentFlowStack - stack of the parent flows’ data
  • executionPath - path of the current execution
  • systemProperties - system properties
  • serializableDataMap - serializable data that is common to the entire run

Engine Architecture

The CloudSlang Orchestration Engine (Score) is built from two main components, an engine and a worker. Scaling is achieved by adding additional workers and/or engines.

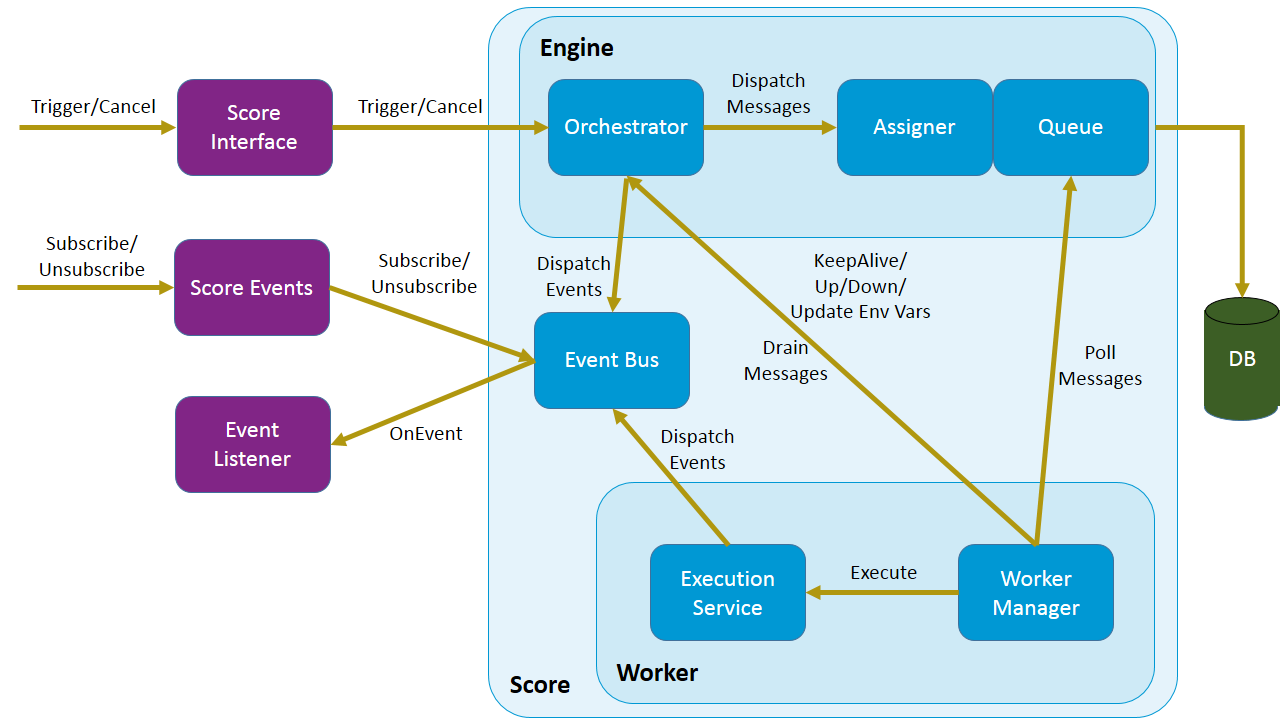

Score Architecture

Score Architecture

Engine

The engine is responsible for managing the workers and interacting with the database. It does not hold any state information itself.

The engine is composed of the following components:

  • Orchestrator: Responsible for creating new executions, canceling existing executions, providing the status of existing executions and managing the split/join mechanism.
  • Assigner: Responsible for assigning workers to executions.
  • Queue: Responsible for storing execution information in the database and responding with messages to polling workers.

Worker

The worker is responsible for doing the actual work of running the execution plans. The worker holds the state of an execution as it is running.

The worker is composed of the following components:

  • Worker Manager: Responsible for retrieving messages from the queue and placing them in the in-buffer, delegating messages to the execution service, draining messages from the out-buffer to the orchestrator and updating the engine as to the worker’s status.
  • Execution Service: Responsible for executing the execution steps, pausing and canceling executions, splitting executions and dispatching relevant events.

Database

The database is composed of the following tables categorized here by their main functions:

  • Execution tracking:
    • RUNNING_EXECUTION_PLANS: full data of an execution plan and all of its dependencies
    • EXECUTION_STATE: run statuses of an execution
    • EXECUTION_QUEUE_1: metadata of execution message
    • EXECUTION_STATES_1 and EXECUTION_STATES_2: full payloads of execution messages
  • Splitting and joining executions:
    • SUSPENDED_EXECUTIONS: executions that have been split
    • FINISHED_BRANCHES: finished branches of a split execution
  • Worker information:
    • WORKER_NODES: info of individual workers
    • WORKER_GROUPS: info of worker groups
  • Recovery:
    • WORKER_LOCKS: row to lock on during recovery process
    • VERSION_COUNTERS: version numbers for testing responsiveness

Typical Execution Path

In a typical execution the orchestrator receives an `ExecutionPlan <developer_score.md#executionplan>`__ along with all that is needed to run it in a `TriggeringProperties <developer_score.md#triggeringproperties>`__ object through a call to the Score interface’s trigger method. The orchestrator inserts the full `ExecutionPlan <developer_score.md#executionplan>`__ with all of its dependencies into the RUNNING_EXECUTION_PLANS table. An Execution object is then created based on the `TriggeringProperties <developer_score.md#triggeringproperties>`__ and an EXECUTION_STATE record is inserted indicating that the execution is running. The Execution object is then wrapped into an ExecutionMessage. The assigner assigns the ExecutionMessage to a worker and places the message metadata into the EXECUTION_QUEUE_1 table and its Payload into the active EXECUTION_STATES table.

The worker manager constantly polls the queue to see if there are any ExecutionMessages that have been assigned to it. As ExecutionMessages are found, the worker acknowledges that they were received, wraps them as SimpleExecutionRunnables and submits them to the execution service. When a thread is available from the execution service‘s pool the execution will run one step (control action and navigation action) at a time until there is a reason for it to stop. There are various reasons for a execution to stop running on the worker and return to the engine including: the execution is finished, is about to split or it is taking too long. Once an execution is stopped it is placed on the out-buffer which is periodically drained back to the engine.

If the execution is finished, the engine fires a SCORE_FINISHED_EVENT and removes the execution’s information from all of the execution tables in the database.

Splitting and Joining Executions

Before running each step, a worker checks to see if the step to be run is a split step. If it is a split step, the worker creates a list of the split executions. It puts the execution along with all its split executions into a SplitMessage which is placed on the out-buffer. After draining, the orchestrator’s split-join service takes care of the executions until they are to be rejoined. The service places the parent execution into the SUSPENDED_EXECUTIONS table with a count of how many branches it has been split into. Executions are created for the split branches and placed on the queue. From there, they are picked up as usual by workers and when they are finished they are added to the FINISHED_BRANCHES table. Periodically, a job runs to see if the number of branches that have finished are equal to the number of branches the original execution was split into. Once all the branches are finished the original execution can be placed back onto the queue to be picked up again by a worker.

Recovery

The recovery mechanism allows Score to recover from situations that would cause a loss of data otherwise. The recovery mechanism guarantees that each step of an execution plan will be run, but does not guarantee that it will be run only once. The most common recovery situations are outlined below.

Lost Worker

To prevent the loss of data from a worker that is no longer responsive the recovery mechanism does the following. Each worker continually reports their active status to the engine which stores a reporting version number for the worker in the WORKER_NODES table. Periodically a recovery job runs and sees which workers’ reported version numbers are outdated, indicating that they have not been reporting back. The non-responsive workers’ records in the queue get reassigned to other workers that pick up from the last known step that was executed.

Worker Restart

To prevent the loss of data from a worker that has been restarted additional measures must be taken. The restarted worker will report that it is active, so the recovery job will not know to reassign the executions that were lost when it was restarted. Therefore, every time a worker has been started an internal recovery is done. The worker’s buffers are cleaned and the worker reports to the engine that it is starting up. The engine then checks the queue to see if that worker has anything that’s already on the queue. Whatever is found is passed on to a different worker while the restarted one finishes starting up before polling for new messages.
